CT/CE-8000 Series

Simulate the actual driving road conditions of EV with dynamic power or current waveforms.

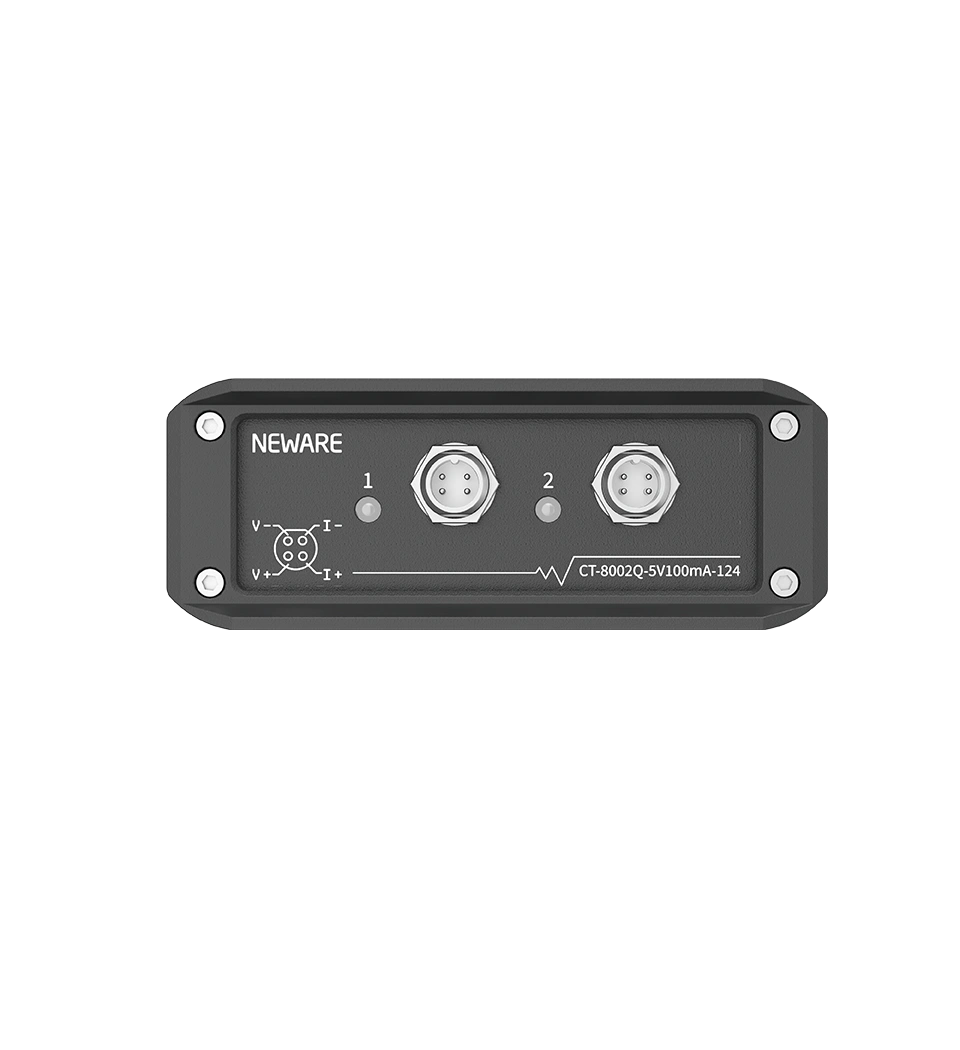

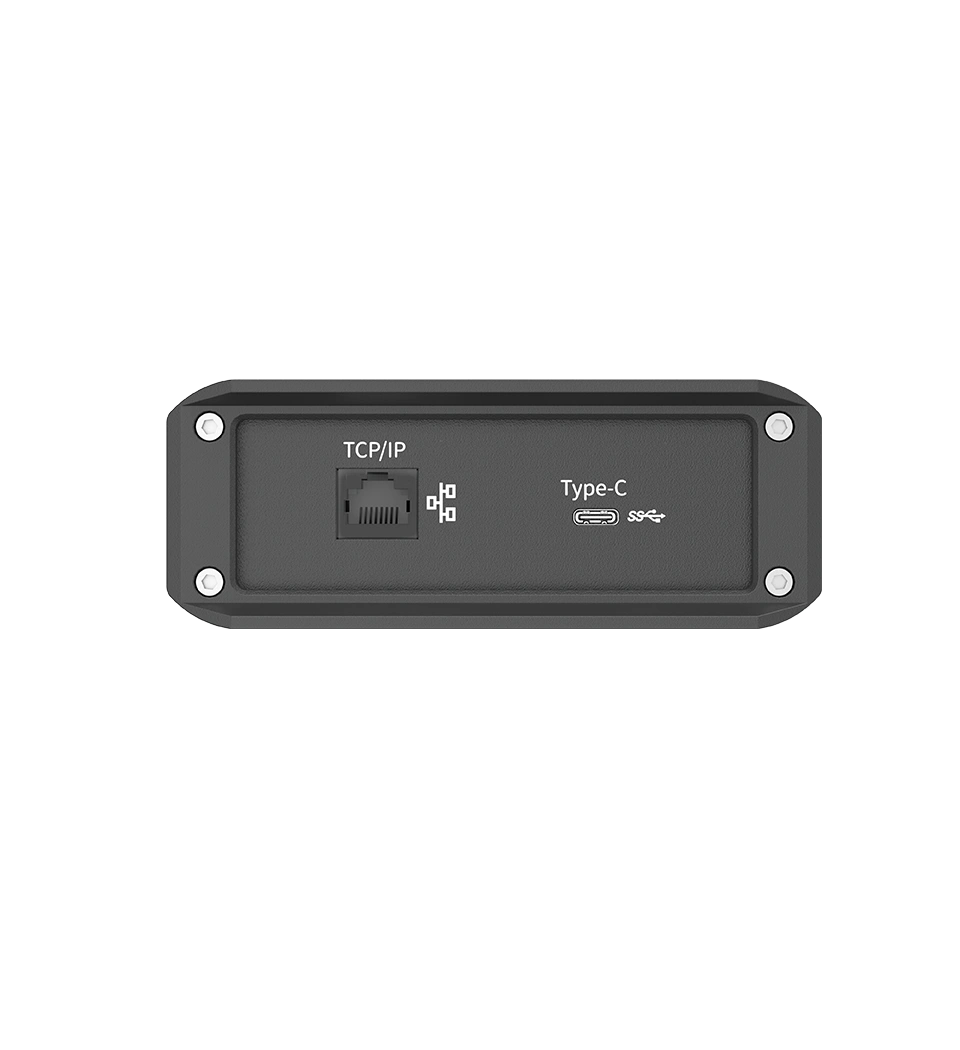

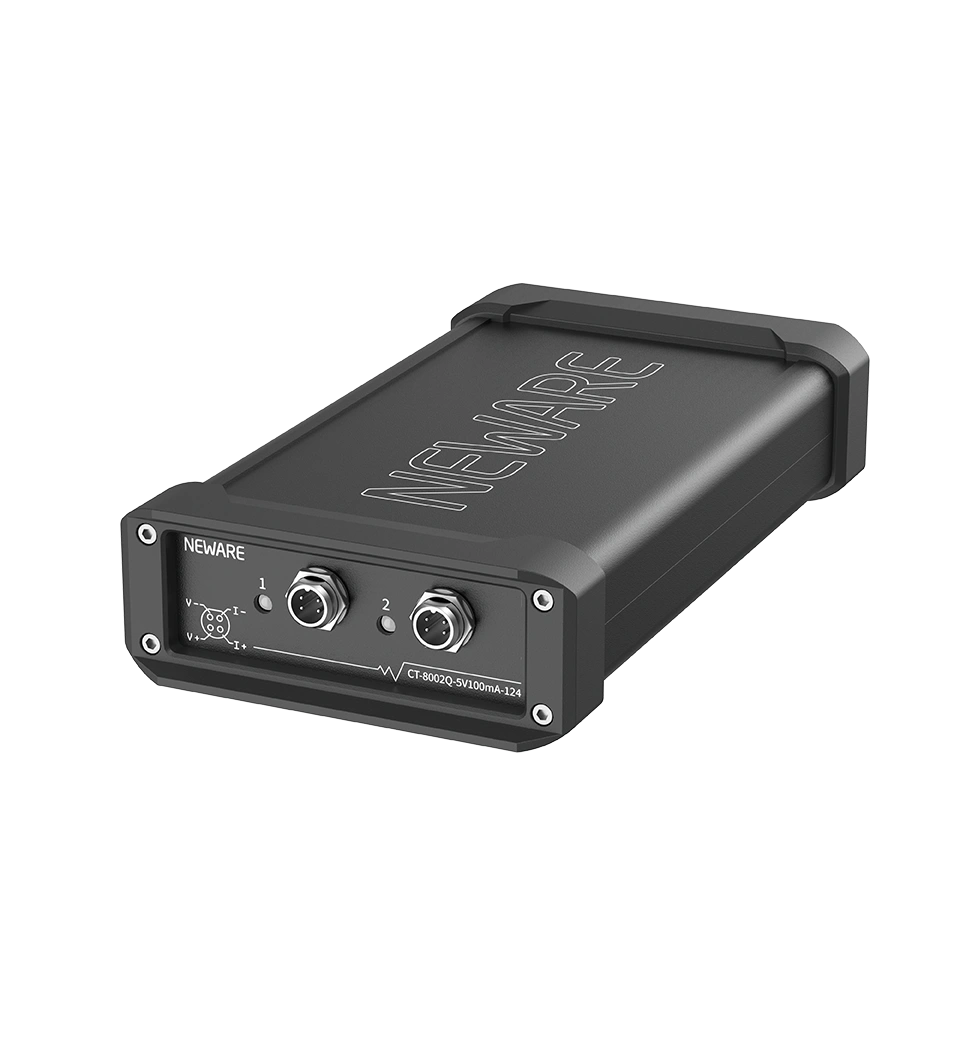

CT-8002Q-5V100mA-124 NEWARE Battery Testing Solutions
CT-8002Q-5V100mA-124 NEWARE Battery Testing Solutions
CT-8002Q-5V100mA-124 NEWARE Battery Testing Solutions
CT-8002Q-5V100mA-124 NEWARE Battery Testing Solutions
CT-8002Q-5V100mA-124 NEWARE Battery Testing Solutions

CT-8002Q-5V100mA-124

CT-8000 Battery Testing System

NEWARE battery tester CT-8002Q-5V100mA is suitable for testing button batteries and supercapacitors. 4 ranges from 0.2 μA to 100 mA,2 channels.Including HPPC and GITT

● Voltage&Current Accuracy:±0.01% F.S.

● Recording Frequency:100Hz

● Current Response Time:≤1ms

● Minimum Pulse Width:500ms

● Off-Line Test:1GB/CH

● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve

For Coin Cells, Super Capacitors, Three-Electrode Systems Testing and etc.


Voltage & CurrentRange1Range2Range3Range4
5V100mA0.2μA ~ 0.1mA0.1mA ~ 1mA1mA ~ 10mA10mA ~ 100mA

*Other models can be customized according to voltage and current requirements.

Read More

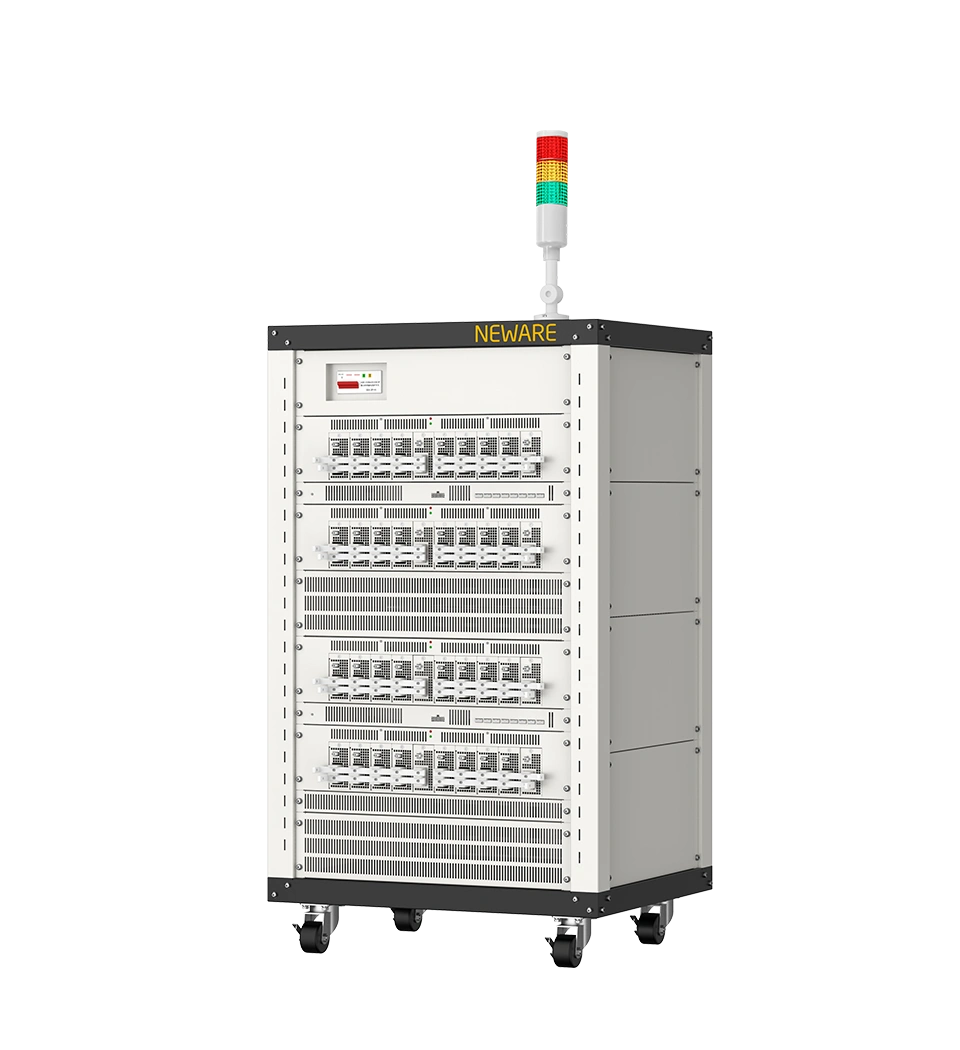

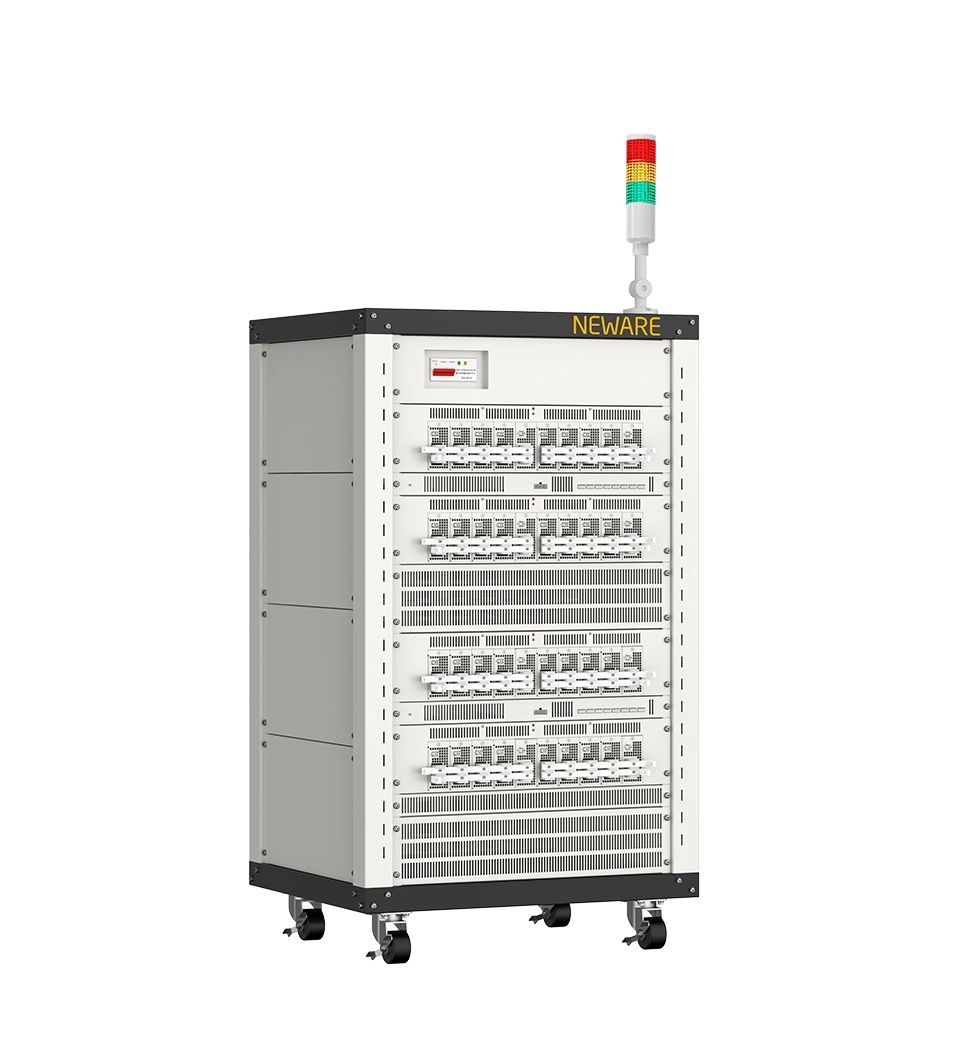

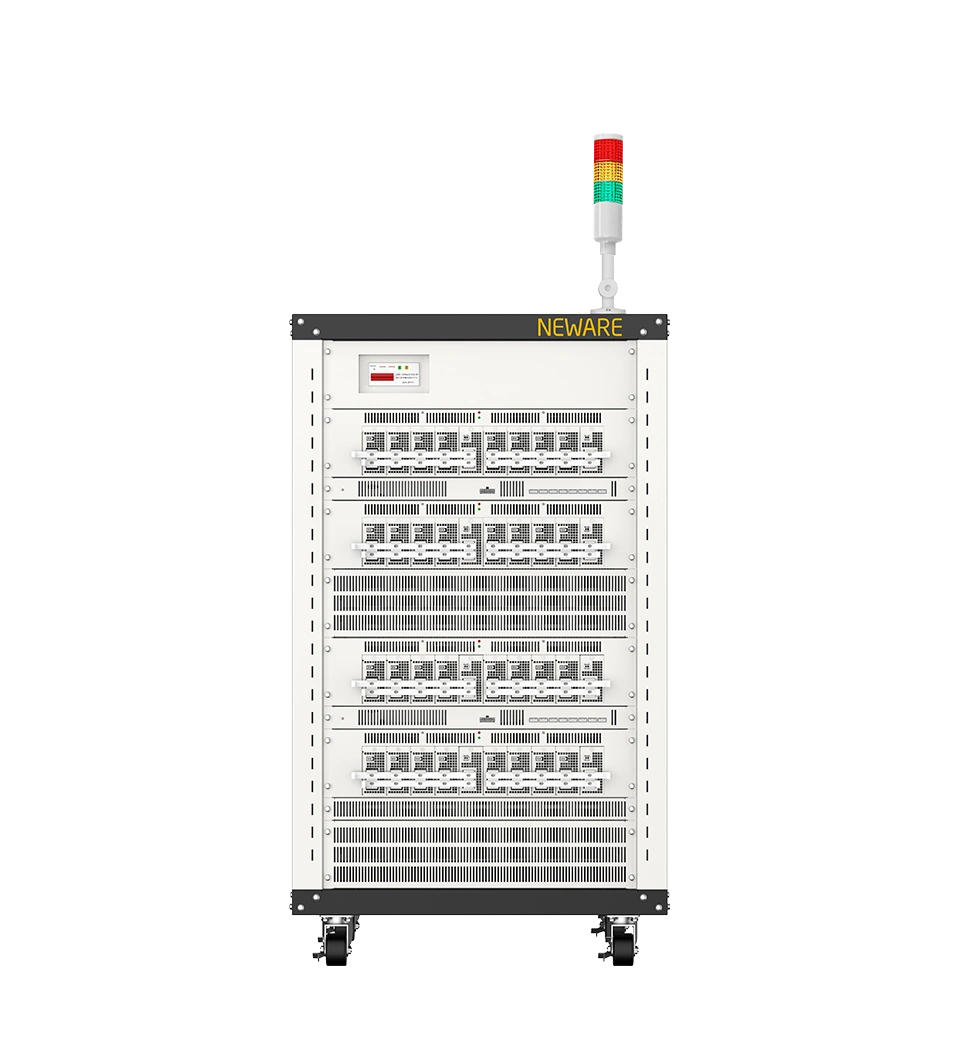

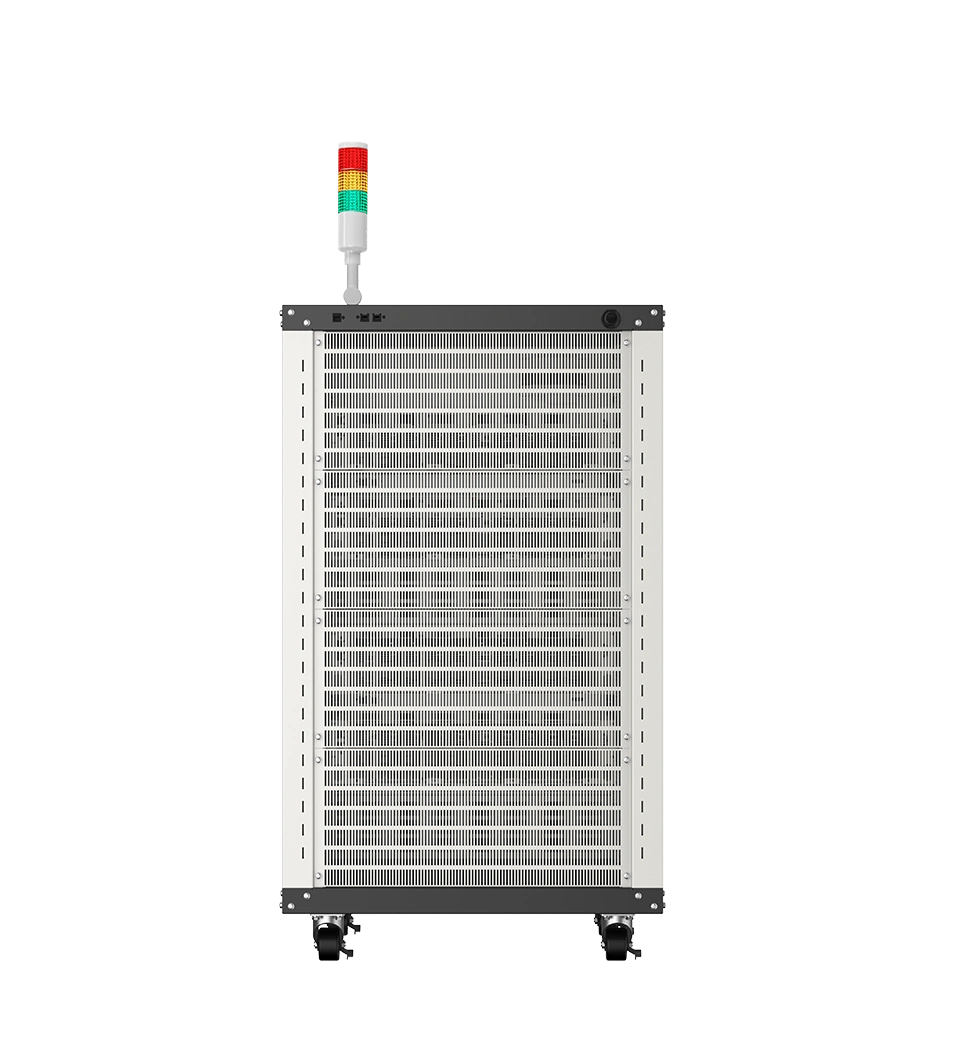

CE-8008-5V200A NEWARE Battery Testing Solutions
CE-8008-5V200A NEWARE Battery Testing Solutions
CE-8008-5V200A NEWARE Battery Testing Solutions
CE-8008-5V200A NEWARE Battery Testing Solutions

CE-8008-5V200A

CT/CE-8000 Battery Testing System

NEWARE 8008-5V200A battery tester for battery test, Electric vehicle battery, super capacitor, flow battery performs DOD,SOC,HPPC, tests, and data storage for test data.

● Voltage&Current Accuracy:±0.05% F.S.

● Recording Frequency:100Hz

● Working Condition Simulation:1,000,000 Rows

● Current Response Time:≤5ms

● Minimum Pulse Width:500ms

● Feedback Efficiency (Min) :65%

Work simulation for power safety.


CE-80005V100A200A300A500A600A
CT-80005V30A50A100A200A300A
500A600A800A1000A-

*CTE-8000:E indicates the energy feedback function.

*Other models can be customized according to voltage and current requirements.

Read More

Work scenarios simulated.
Enhanced data support.

Based on NEWARE 5th generation test system architecture, it can perform Cycle Life Test, Rate Charging / Discharging Test, Pulse Simulation Test, HPPC, etc. Meanwhile, it can simulate the actual driving road conditions of electric vehicles by dynamic power or current waveform.

Cycle Life Test
Rate Charging / Discharging Test
Pulse Simulation Test
HPPC
simulate the actual driving road conditions of electric vehicles by dynamic power or current waveform

Multiple testing modes.
One equipment, unlimited capabilities.

Cycle life test
Rate Charging / Discharging Test
Pulse simulation test
GITT Test
DCIR test
dQ/dV differential capacity curve

Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.

{dQ/dV differential capacity curve analysis graph

Powerful programmability.
Meet diverse testing needs.

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.

DBC Configuration
  CC & CV charge/discharge test
500ms pulse width
Segmented recording
DBC Configuration
CC & CV charge/discharge test
500ms pulse width
Segmented recording
Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.
CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.
Testing the performance of the battery under fast changes in current/power.
Allow to set up to 3 segment recording conditions per step, including voltage, current and time.
